Smart and Compact

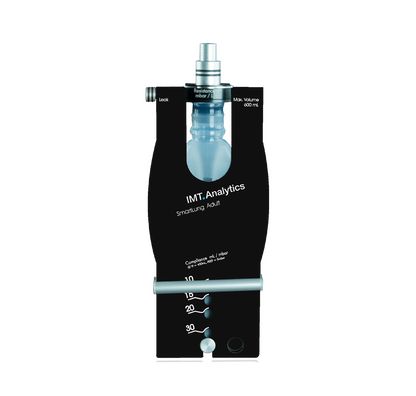

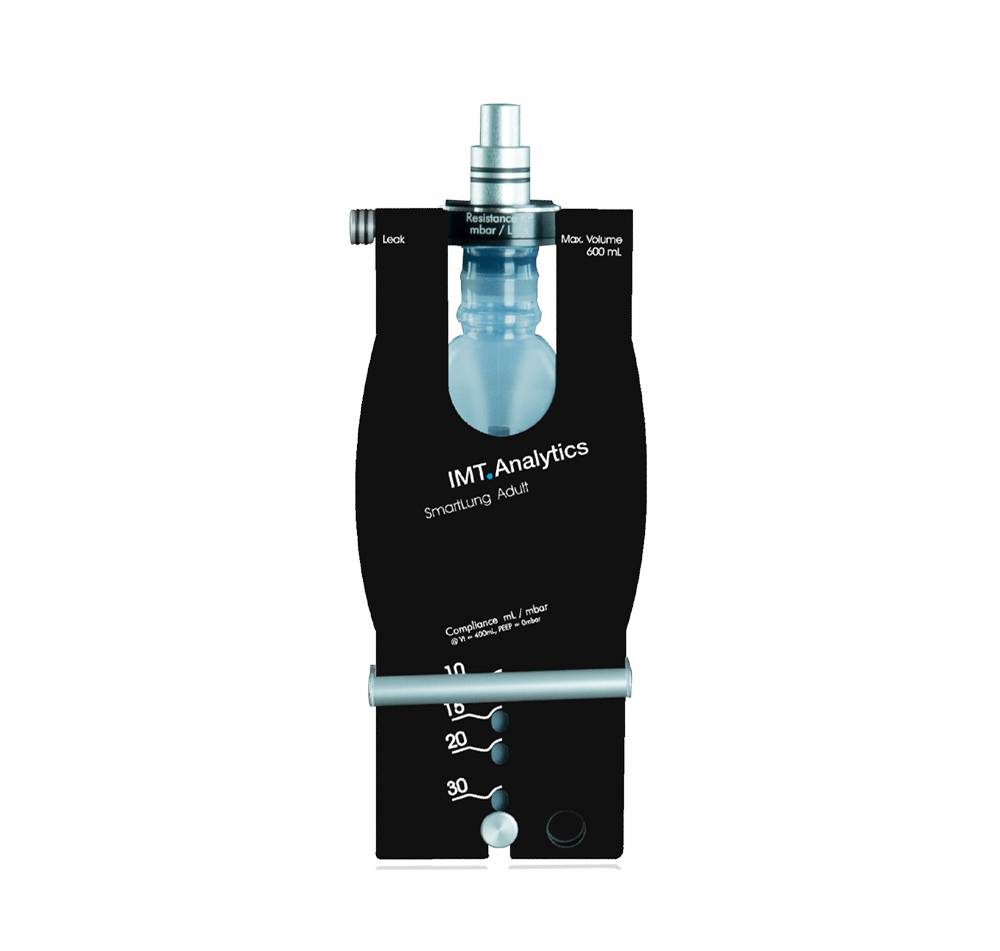

The SmartLung Adult is our compact test lung solution for adults. With its excellent portability, it is the most cost-effective way to realistically simulate adult lungs according to IEC 60601-2-13 and EN 794-3.

It can simulate a wide range of scenarios with up to 1000 mL tidal volumes.

Crafted from premium materials, the SmartLung 2000 ensures durability, reliability, and easy part replacement for lifelong use.

Adjustable

The SmartLung 2000 is an excellent tool for testing ventilators and anesthesia devices. It is an ideal addition to our flow and pressure measurement devices, the FlowAnalyser and CITREX range.

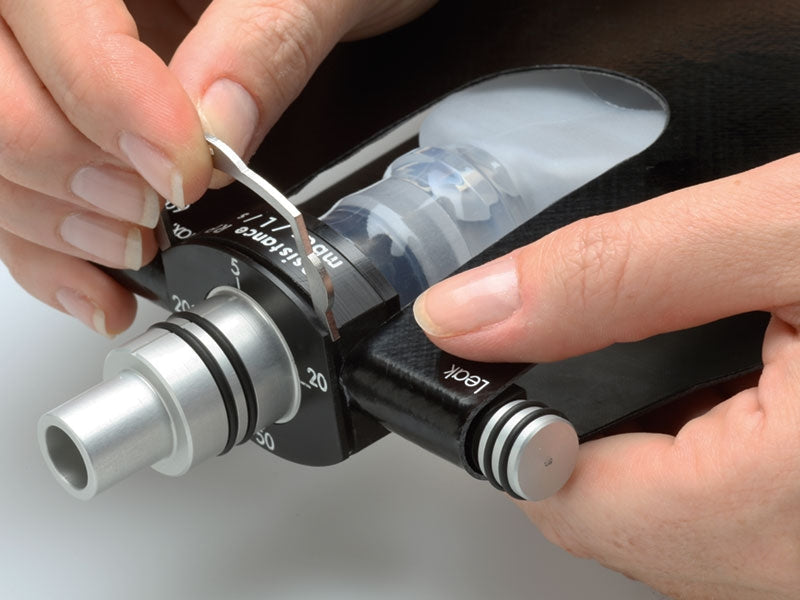

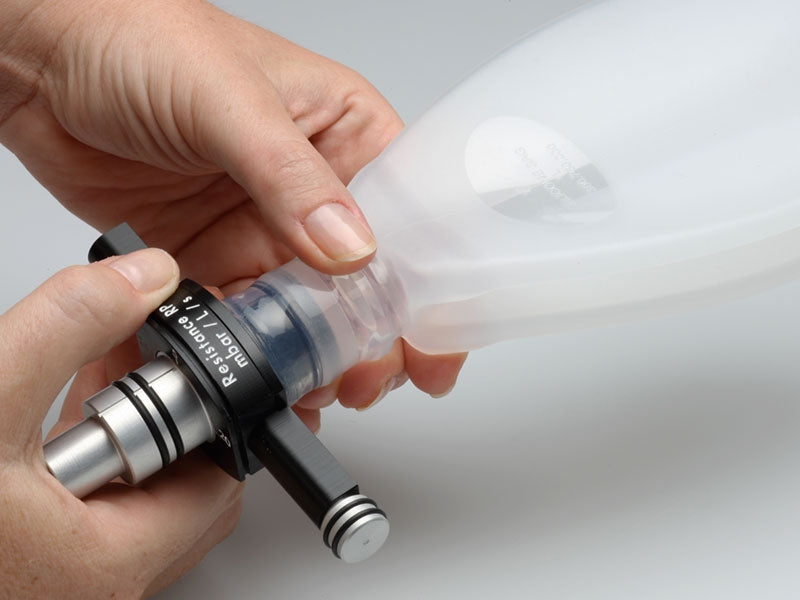

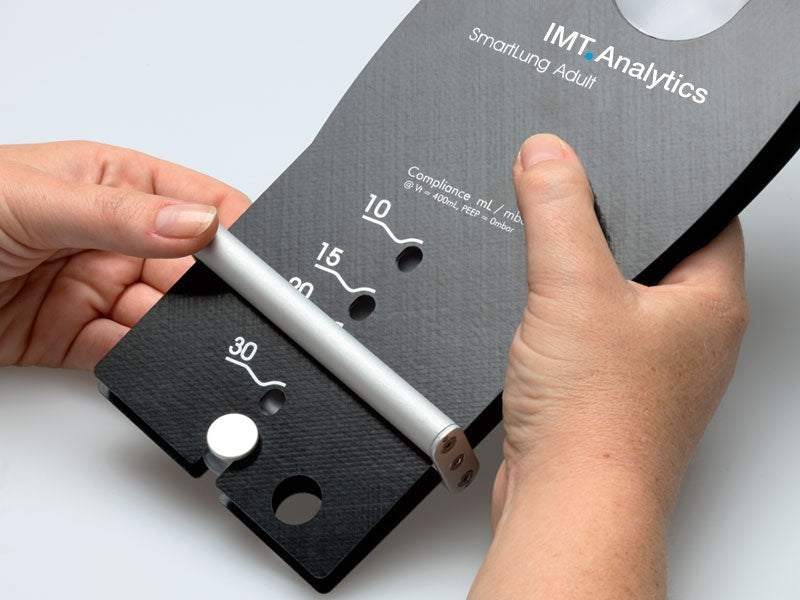

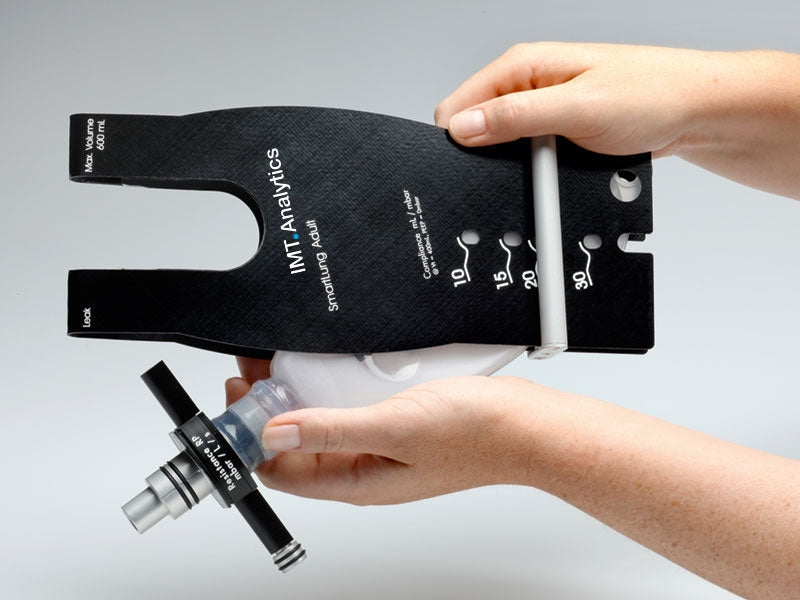

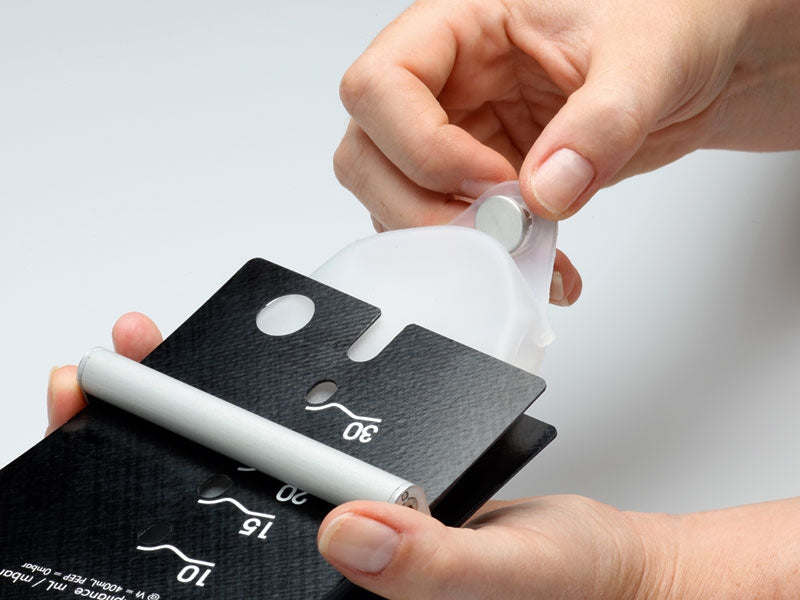

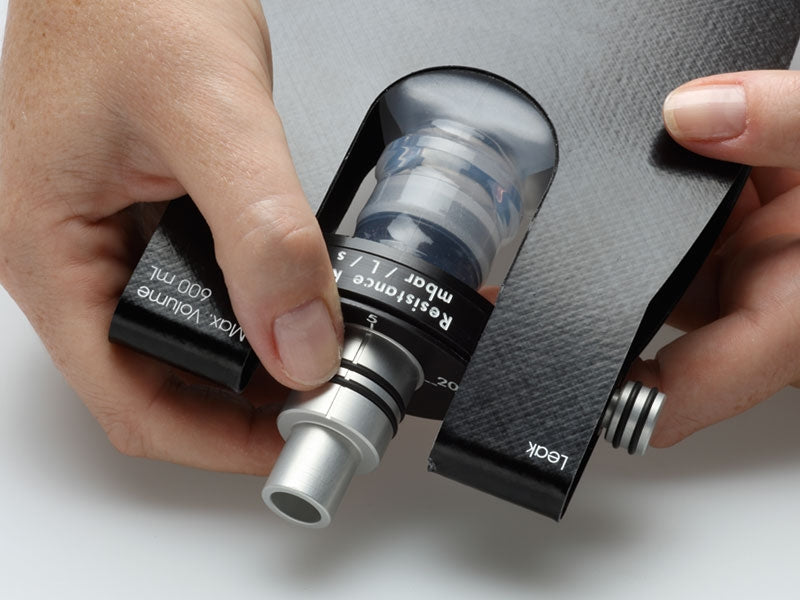

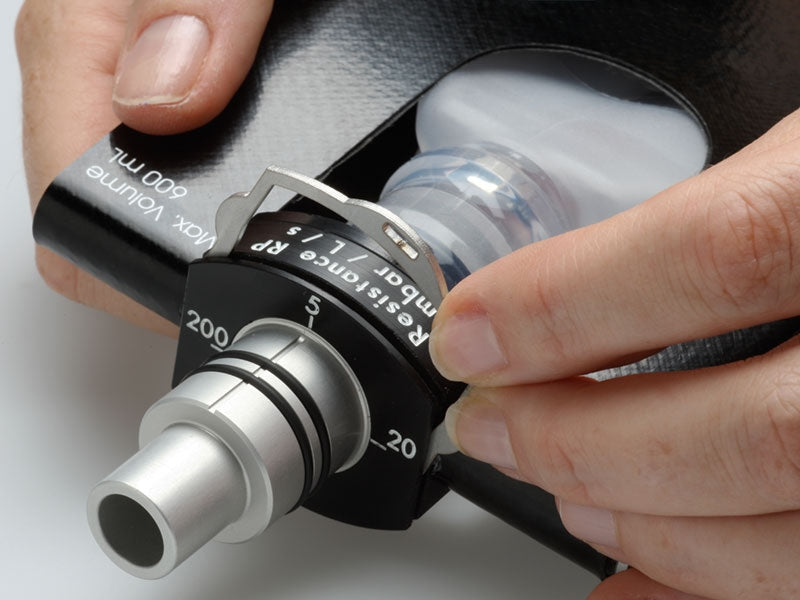

By adjusting the slider, the test lung can simulate various levels of compliance, and twisting the connector allows you to simulate different airway resistances. You can control the leakage by turning the leak knob located at the side of the SmartLung.

Key features:

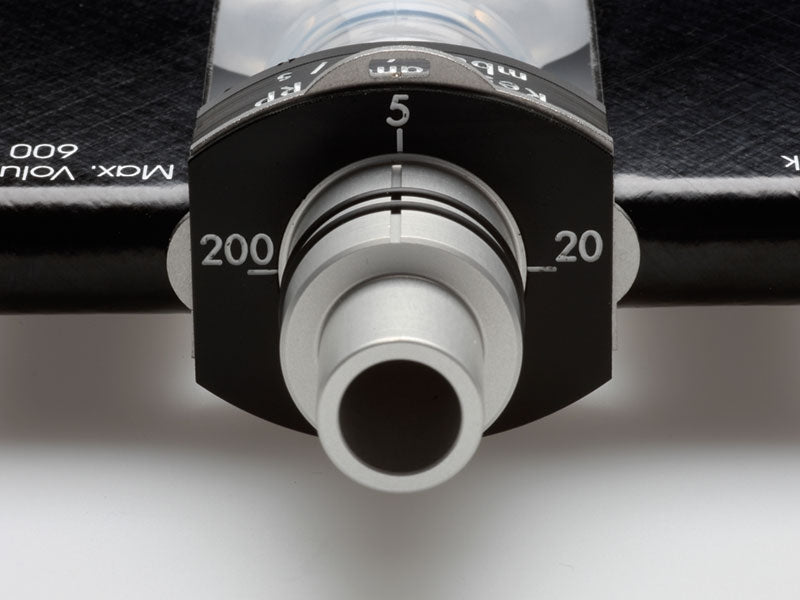

• Adjustable resistance from 5 to 200 mbar/L/s

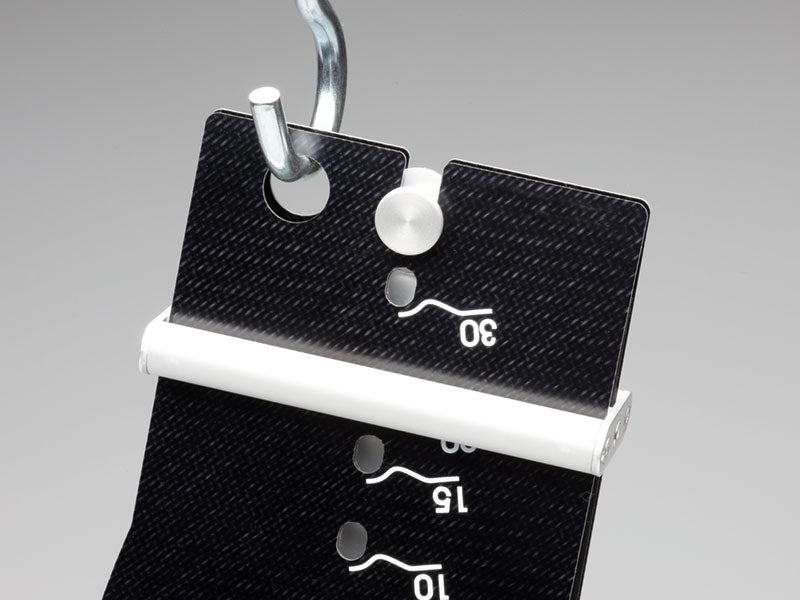

• Adjustable compliance from 10 to 30 mL/mbar @ 400 mL
• Outstanding performance for patient simulation in ventilator training
• 1000 mL bag (applicable volume from 0 to 600 mL)

Scope of delivery:

• SmartLung Adult
• User manual
• High-quality carrying bag

IMT Analytics test lungs are a simple and cost-efficient solution for safely verifying ventilators and anesthesia devices for functionality and precision.
