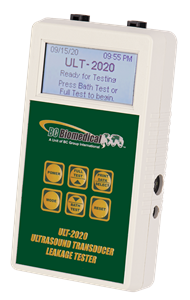

The Model ULT-2000 Series is a family of microprocessor-based Ultrasound Transducer Leakage Testers. The ULT-2010 measures both the conductivity of the cleaning medium and the leakage current of the ultrasound transducer. The ULT-2020 offers the same features of the ULT-2010, plus a Meter Mode and data logging.
After many months of conducting an exhaustive evaluation of the BC Group’s Ultrasound Leakage Tester and Probe Adapter, Philips Ultrasound has issued the following statement:
“The BC Biomedical ULT-2020 Current Leakage Tester with the ULT-PA-19 Adapter have been validated by Philips Ultrasound for use with the X7-2t, S7-3t, and S8-3t compact connector TEE transducers.”
For Technical Support on ULT’s see: https://bccalibrationservice.com/ult-technical-support/
• Large graphic display
• Selectable options and parameter setup
• User-selectable source (challenge) voltage (90 to 275 VAC)
• User-selectable source (challenge) frequency (50 or 60 Hz)
• User-selectable test limits by ultrasound transducer manufacturer and model
• 1% FS measurement accuracy
• Auto ranging with 10, 250, or 500 µA FS
• Automatic internal self test
• Single button press for full system test
• Simple PASS / FAIL mode – for non-technical users
• Analytical mode – for technical users
• Digital calibration – no pots to turn
• Battery life display (0 to 100%)
• Programmable backlight timer
• Flash-upgradeable firmware
• RS-232
• PC software (limit configuration tool)
• Serial printer output with programmable user header
• Real time clock
• Compatible with Dale Technology® Dale800 and Fluke Biomedical® ULT 800 ultrasound transducer adapters and dual conductivity probe
• Meter mode for extended measurement periods
• Programmable meter source (challenge) voltage and frequency
• Programmable meter timer
• Datalog with storage of 99 test records
ULT-2020 (METER, DATALOG)
HAS ALL THE BASIC MODEL FEATURES PLUS:
STANDARD ACCESSORIES:
BC20-21111 UNIVERSAL BATTERY ELIMINATOR
BC20-41357 PC SOFTWARE (LIMIT CONFIGURATION TOOL)
OPTIONAL ACCESSORIES:
BC20-30106 CASE, SMALL SOFT SIDED CARRYING(Instrument only)
BC20-30107 CASE, MEDIUM SOFT SIDED CARRYING(Instrument and printer)
BC20-41361 COMMUNICATION CABLE - (USB TO MINI DIN M)
BC20-42200 CIDEX® COMPATIBLE TEST BASIN
BC20-42310 PACKAGE OF 5 ROLLS OF PAPER FOR PRINTER
BC20-42322 CABLE, CONDUCTIVITY TEST FIXTURE
(For use with ULT-TF-T2)
BC20-42324 CABLE, BATH TEST FIXTURE (For use with ULT-TF-T2)
BC20-42325 PRINTER CABLE FOR PRN-1130
BC20-42332 ULT Kit - Includes 1: MEDIUM CARRY CASE
(BC20-30107), PRINTER (PRN-1130), POWER SUPPPLY FOR PRN-1130 PRINTER (BC20-21118), CABLE FOR PRN-1130 PRINTER (BC20-42325), COMMUNICATION ADAPTER CABLE (BC20-41361), FIVE ROLLS PAPER (BC20-42310),
ULT-TF-T2 ULT Test Box (Simulates conductivity and leakage current)
CONDUCTIVITY PROBES: (not included, order separately)
ULT-PC-10 DUAL CONDUCTIVITY PROBE (Short)
ULT-PC-15 DUAL CONDUCTIVITY PROBE (Medium)
ULT-PC-20 DUAL CONDUCTIVITY PROBE (Short & Long)
ULT-PC-25 FOR USE WITH GUS CLEANING SYSTEM
ULT-PC-30 DUAL CONDUCTIVITY PROBE (Flexible)
ULTRASOUND TRANSDUCER ADAPTERS: (not included, order separately)
TRANSDUCER MANUFACTURER
MODEL
ADAPTER PART NUMBER
Acuson / Siemens
V5M (TEE), V7M (TEE), EV8-C4, etc For Acuson Sequoia Ultrasound Systems
ULT-PA-10
Acuson / Siemens
ALL 260-pin Transducers
ULT-PA-12
Acuson / Siemens / Ultrasonix
ALL 156-pin Transducers
ULT-PA-13
Aloka
UST-934N/945BP, ASU-32-3-M, ASU-32-WSJ, UST-556/5512, UST-5514DTU
ULT-PA-22
ATL / Philips
HP/Agilent/Philips 21311A, 21369A, 21378A, 21381A. For HP Sonos 4500, 5500, 7500, and Imagepoint. For ATL HDI 1500,3000,3500, and 5000
ULT-PA-14
ATL / Philips
T6210, L7-4 and similar 260-pin transducers with bellhousing
ULT-PA-24
GE
GE LogiQ 3, 5, 7, 9 and GE Vivid 3, 5, 7, 6T, 9T
ULT-PA-16
GE
LogiqBook Probes - GE VIVID I 6T, 9T, etc.
ULT-PA-25
GE
YMS/RT
ULT-PA-27
GE / Samsung
GE: 4C-D, 6VT-D, Voluson E8, Vivid E9, GE Logiq E10
Samsung: RS80A, HS70A
ULT-PA-30
Hitachi
HI VISION 900, 5500, 6500, 8500 EUB-2000, EUB-525, EUB-405 Plus
ULT-PA-21
Philips / ATL / Mindray
Philips iE33 and iU22 diagnostic TEE - S7-2 (TEE), S7-3t (TEE), S3-1, C8-4v, C9-5, et all with bellhousing, Mindray DC8
ULT-PA-17
Philips / HP
HP/Agilent/Philips 21202A, 21364A, 21365A, 21366A, 21367A
ULT-PA-18
Philips / Mindray / Samsung / Koelis SAS
Mindray M9, M7, TE7; Philips Sparq, CX50, Affiniti 50, Affiniti 70, Epiq 5, Epiq 7, Epiq CVx; Samsung Medison HM70A; Koelis - All Transducers
ULT-PA-19
Sonosite
ICT7-4, ITC8-5, C60, L38/10-5, TEEx For Sonosite Titan and Micromaxx Ultrasound Systems
ULT-PA-11
Toshiba
Acuson/Toshiba for use with Acuson/Siemens XP, Aspen, Capasee, 3-needle guide C3 Transducers; ATL 3.5 DFT Transducers; Toshiba PSF-37HT and F series Transducers For Toshiba SSH-140A, SSA-270A, and 340A systems
ULT-PA-20
Zonare
E9-4
ULT-PA-29
Sonosite
X-Porte
T8-3
ULT-PA-32
All Manufacturers
Universal Pen Style (For small surface area testing)
ULT-PA-23
