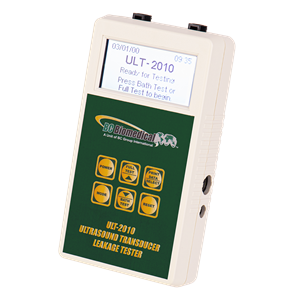

The ULT-2000 Series is a family of microprocessor-based, ultrasound transducer leakage testers.The ULT-2010 measures both the conductivity of the cleaning medium and the leakage current of the ultrasound transducer.
Add a Meter Mode and Datalogging with the ULT-2020.
For Technical Support on ULT’s see: https://bccalibrationservice.com/ult-technical-support/
• Large graphics display with cursor selection of options and setup of parameters
• User-selectable source (challenge) voltage (90 to 275 VAC)
• User-selectable source (challenge) frequency (50 or 60 Hz)
• User-selectable test limits by ultrasound transducer manufacturer and model
• 1% FS measurement accuracy
• Auto ranging with 10, 250, or 500 µA FS
• Automatic internal self test
• Single button press for full system test
• Simple pass / fail mode – for non-technical users
• Analytical mode – for technical users
• Digital calibration – no pots to turn
• User-selectable display options
• Battery life display (0 to 100%)
• Programmable backlight timer
• Contrast is software adjustable
• Flash upgradeable firmware
• RS-232 Communications
• PC software (limit configuration tool)
• Serial printer output with programmable user header
• Real time clock
• Compatible with Dale Technology® Dale 800 and Fluke Biomedical® ULT 800 ultrasound transducer adapters and dual conductivity probes
