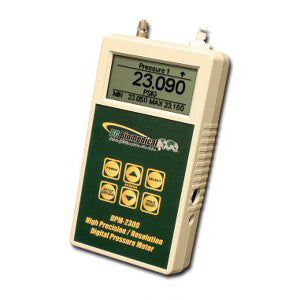

The Model DPM-23017510NFC is a microprocessor-based, high precision, high resolution Digital Pressure Meter family. These meters measure both gas and liquid pressures and provide multiple engineering unit displays for the results. The unit may have one or two pressure sensors and an optional temperature sensor input to measure pressure and temperature all in one meter. The DPM-23017510NFC meter is intended to be used by skilled technicians in the evaluation and servicing of a wide variety of medical equipment.
Recommended model for use with the TSI Certifier-FA© Respiratory Vent Test System.
Recommended model for use with the TSI Certifier-FA© Respiratory Vent Test System.
DPM-23017510NFC Basic Features:
• Dual Sensors/Ranges: 75 PSI Sensor (-13.5 to 75 PSI), 10 PSI Sensor (-10 to 10 PSI)
• Female CPC (Quick-Disconnect) Connector for 75 PSI and Male Luer for 10 PSI
• Large graphic display
• Selectable options and parameter setup
• 0.05% FS pressure accuracy
• Standard pressure scales include 13 different engineering unit ranges (psi, mmHg@0c, mmHg@20c, inHg@0c, inHg@20c, CmH2O@20c, inH2O@4c, inH2O@20c, inH2O@60f, Kg/cm2, kpa, bar, mbar)
• Digital calibration – no pots to turn
• Battery life display (0 to 100%)
• Programmable digital filter
• 24 bit measurement
