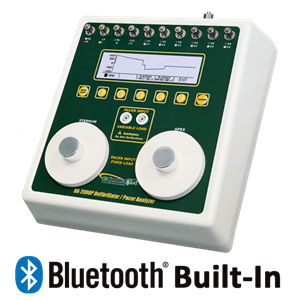

NOW built with Bluetooth inside! As of March 1st, 2023, the DA-2006P is being manufactured with Bluetooth. All older models, will require the BC20-41401 Bluetooth Adapter.
The DA-2006 is a microprocessor-based analyzer that is used in the testing of defibrillators. It measures the energy output and provides information about the pulse. It is used on manual, semi-automatic and automatic defibrillators with monophasic, biphasic and pulsed biphasic outputs.
NOTE: This instrument is intended for use by trained service technicians.
• Built-in Bluetooth (older models need adapter)
• Tests monophasic, biphasic and pulsed biphasic defibrillators
• Tests AEDs
• Pacer testing capability
• Internal paddle adapters
• Printer output
• Battery or line power
• Simple to operate
• Graphics display with simultaneous detailed status of parameters and scrolling control of options
• On screen viewing of defibrillator and pacemaker waveforms
• Drop down choice screens list all options for parameters
• Monophasic and biphasic compatible
• 5000 V, 1000 joule capacity
• High and low ranges
• Cardioversion delay measurement
• Charge time measurement
• Waveform storage and playback
• 10 universal patient lead connectors
• 25 pin connector for Centronics printer
• 9 volt battery power
• Low battery indicator
• Available battery eliminator
• Display backlight
• Full remote operation via rs-232
• Flash programmable for upgrades
• Auto sequence testing
Product Spotlight - DA-2006 Series:
