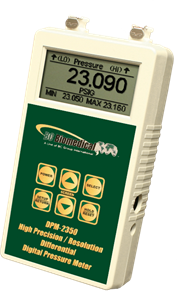

The Model DPM-235175NNFC is a microprocessor-based, high precision, high resolution Digital Pressure Meter family. These meters measure both gas and liquid pressures and provide multiple engineering unit displays for the results. The unit may have one or two pressure sensors and an optional temperature sensor input to measure pressure and temperature all in one meter. The DPM-235175NNFC meters are intended to be used by skilled technicians in the evaluation and servicing of a wide variety of medical equipment.
Recommended model for use with the TSI Certifier-FA© Respiratory Vent Test System.
Recommended model for use with GE Aestivas, Aespires, Avance, Aisys, Avance CS2, Aisys CS2, and CS600 anesthesia machines.
Recommended model for use with the TSI Certifier-FA© Respiratory Vent Test System.
Recommended model for use with GE Aestivas, Aespires, Avance, Aisys, Avance CS2, Aisys CS2, and CS600 anesthesia machines.
DPM-235175NNFC (Basic Features):
• Differential 75 PSI sensor (-13.5 to 75 PSI)
• Dual female CPC (Quick-Disconnect) connectors
• Large graphic display with selectable options and parameters set up
• 0.05% FS pressure accuracy
• Standard pressure scales include 13 different Engineering unit ranges (psi, mmHg@0c, mmHg@20c, inHg@0c, inHg@20c, CmH2O@20c, inH2O@4c, inH2O@20c, inH2O@60f, Kg/cm2, kpa, bar, mbar)
• Digital calibration – no pots to turn
• Selectable display options and digit sizes
• Battery life display (0 to 100%)
• Programmable digital filter
• Display contrast is software adjustable
• 24 bit measurement
